Clipsal Surge Protector SPD, 1P, 40kA | MX9SP140
7 year warranty

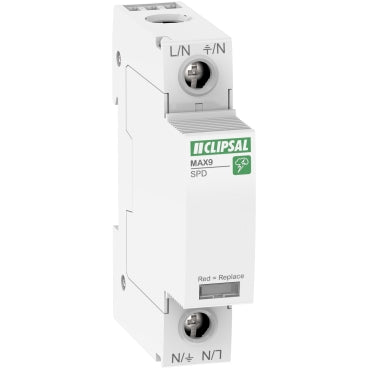

Clipsal Surge Protector SPD, 1P, 40kA | MX9SP140

$199.00 AUD
{price} OFF
Tax included.
Installation Option
  • Unit Only
  • Supply & Installation Package

Protect Your Electrical Investment with Australia's Most Trusted SPD

The Clipsal MAX9 MX9SP340 Surge Protection Device delivers industrial-strength protection for your 3-phase electrical systems. Engineered to Australian standards and backed by Clipsal's reputation for reliability, this 40kA surge protector safeguards valuable equipment from costly voltage spikes and power surges.

Technical Specifications

▼

General

Model:MX9SP140
Product Type:Surge Protection Device (SPD)
Range:MAX9
Poles:1P (Single Pole)
Technology:MOV (Metal Oxide Varistor)
Application:Electrical Distribution Network

Electrical Ratings

Rated Operational Voltage: 240V AC ±6%50/60 Hz
Max Continuous Operating Voltage:350V AC
Maximum Discharge Current: 40 kAHIGH PROTECTION
Nominal Discharge Current:15 kA
Voltage Protection Level:<1.6 kV (Type 2)
Residual Voltage:1545 V

Performance

Response Time: ≤25 nsULTRA-FAST
Max Residual Current:0.6 mA @ 240V
Temporary Overvoltage:336V L/PE (5s withstand)
SPD Class:Type 2

Signalling & Monitoring

Local Signalling:White/Red Flag
Remote Signalling:1 NO + 1 NC Contacts
Signalling Circuit Voltage:AC 250V 50/60Hz
Signalling Output Current:0.25 A

Installation & Connections

Mounting:DIN Rail (Clip-on)
Terminal Type:Tunnel Type (Top or Bottom)
Cable Cross Section (Rigid):2.5-25 mm²
Cable Cross Section (Flexible):4-16 mm²
Wire Stripping Length:14 mm
Tightening Torque:3.5 N.m

Dimensions & Weight

Height:85 mm
Width:18 mm
Depth:64 mm
Net Weight:119 g
Colour:White (RAL 9003)
Comb Busbar Compatibility:9mm Pitch

Environmental & Protection

IP Rating:IP20
IK Rating:IK03
Operating Temperature:-25°C to +70°C
Storage Temperature:-40°C to +85°C
Operating Altitude:0-2000m
Relative Humidity:5-95% @ 55°C
Pollution Degree:2

Standards & Compliance

Standards:IEC 61643-11:2011, EN 61643-11:2012
Quality Labels:RCM
EU RoHS:Compliant
Earthing Systems:TN-C, TN-S, TT

Warranty

Contractual Warranty: 7 YearsEXTENDED

Clipsal Surge Protector SPD, 1P, 40kA | MX9SP140

Performance

Downloads

Warranty

Terms & Conditions

Maximum discharge current
40 kA conforming to IEC 61643-11

Nominal discharge current
15 kA conforming to IEC 61643-11

[ue] rated operational voltage
240 V +/- 6 % AC 50/60 Hz

Ambient air temperature for operation
-25...70 °C
MX9SP140 Data Sheet
7 Year Warranty
Sarros Lifetime Guarantee

For further details visit Clipsal


Terms & Conditions
